Infineon CoolGaN™

AM Series

AM-700C1

The AM-700C1 can support 1 × 700W output into 4Ω. The AM-700C1 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Inquiry

Request Evaluation Kit

Specifications

1 × 700W Amplifier Module
THD+N: 0.01% @ 1W (4Ω, 1kHz)
Voltage Gain: 26dB
Output Noise: 110μV (A-weighted)
Output Impedance: 75mΩ
Compact: L92.0 × W47.0 × H40.0 mm
Weight: 101g

Download Datasheet

Thank you! Your submission has been received!

Download

Please use work email.

Related Products

AM-500C1G

The AM-500C1G amplifier module integrates Infineon’s CoolGaN™ power transistor IGC090S18S1 with the IRS20957S Class-D controller IC, delivering exceptional power density, switching efficiency, and audio fidelity.

Infineon CoolGaN™

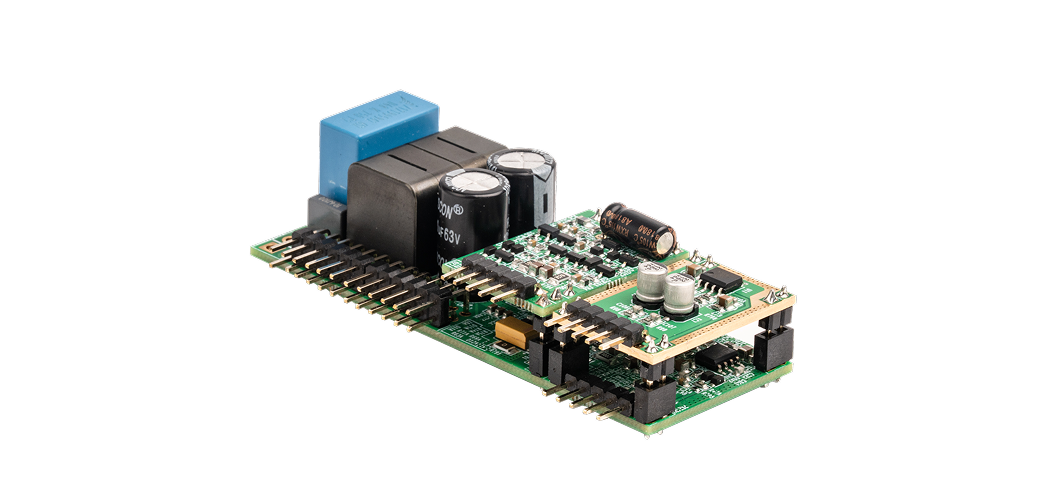

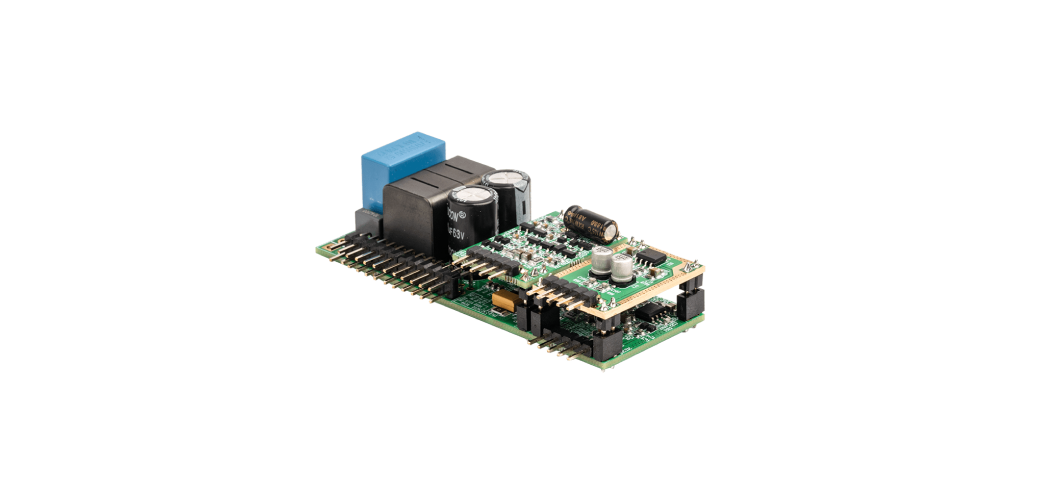

AM-200C1G

The AM-200C1G integrates Infineon CoolGaN™ technology with a Class-D controller to deliver high efficiency, audio fidelity, and up to 200W output into 4Ω in a compact, heatsink-free design.

Infineon CoolGaN™

AM-250C2-BD

The AM-250C2-BD can support 2 × 125W output into 4Ω. The AM-250C2-BD has built-in OTP, OCP protect functions, and it is a mature and stable product.

Infineon CoolGaN™

AM-500C2-BD

The AM-500C2-BD can support 2 × 250W output into 4Ω. The AM-500C2-BD has built-in OTP, OCP protect functions, and it is a mature and stable product.

Infineon CoolGaN™

AM-500C1

The AM-500C1 can support 1 × 500W output into 4Ω. The AM-500C1 has built-in OTP, OCP protect functions, and it is a mature and stable product.

Infineon CoolGaN™
